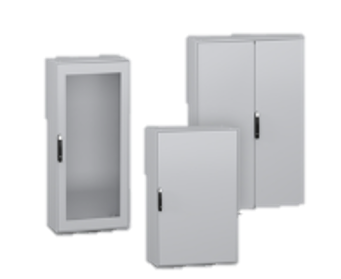

Spacial SM
The Spacial SM is Schneider Electric’s compact floor-standing steel enclosure, designed for smaller-scale power distribution, control, and automation needs. Compliant with IEC 62208, it provides reliable protection up to IP55 and IK10, with a space-saving design that maintains strength and accessibility.
Electrical Characteristics
| Material | Steel |
|---|---|
| Finish | Epoxy-polyester powder, RAL 7035 |
| IK Rating | IK10 |
| Applications | Power distribution and automation where modularity isn’t required |
| Door | 120° opening, single or double-leaf depending on size |
| IP Rating | IP55 |
| Mounting | Floor standing with optional plinth |
| Standards | IEC 62208, IEC 60529 |
| Structure | Welded one-piece body, no frame system |
| Type | Monobloc floor-standing enclosure |
